Buying Guide for the Best Water Pressure Booster Pump

If the water pressure in your home is coming through slowly, maybe even trickling, you may need to install a water pressure booster pump. You should first check a few basics before spending a lot of money on the best water pressure booster.

Check to see if your pipes are in good condition. If they are, great; if not you should see about having them replaced as they might be causing the low water pressure. If the pipes are in good shape, you should next perform a water pressure reading or ask your city water department to do one.

An ideal water pressure reading of 45 to 55 psi is the goal. If your reading is on target contact a licensed plumber, as you may have an obstruction. But if the pressure is low, you may need to purchase a water pressure booster pump.

Let’s take a look at five of the top rated water pressure booster pumps.

Top 5 Best Water Pressure Booster Pumps in 2021

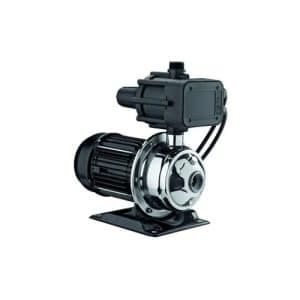

1. Simer 4075SS-01 3/4 HP Pressure Booster Pump

This 3/4 horsepower booster provides additional pressure to your water flow to a maximum of up to 40 psi and with a flow rate of up to 26 gpm.

The Simer has a stainless steel body and, therefore, is resistant to corrosion.

It also comes ready to install and includes a six foot 115-volt power cord.

TIP: Don’t forget to use a regulator so you don’t use too much pressure, thus blowing the motor.

The Simer pump comes with auxiliary accessories and a mounting bracket. Simmer makes the installation easy so you don't need to hire a professional. This switch is constructed marine-grade wiring so that it can withstand corrosive and harsh conditions when submerged put in the water.

Additionally, the pump is equipped with an impeller that prevents the motor from heating up, and this helps to increase the life of the switch. It is a compact device that is designed to take up less space when installed.

Highlighted Features
  • The pump securely clips into the mounting base for easy installation and removes to clean and inspect the pump once installed
  • The float switch mounts separately connecting to the pump to switch it on when it detects water and automatically turn the pump on, when the water is removed the pump automatically shuts off
  • The bilge pump and the switch are fully submersible with a water pumping capacity of 600 GPH
  • The ¾” O.D. outlet hose barb is designed to be used with standard ¾” I.D. bilge hose
  • Its ignition protected, uses a very low 3 amps operating current and has tinned marine grade lead wires

Pros

  • 3/4 Horsepower
  • Corrosion resistant
  • Stainless steel housing
  • Quiet operation
  • 24 gpm flow rate
  • Easy to install
  • Three-year warranty
  • 40 PSI Max

Cons

  • Complaints of leaking
  • Short lifespan

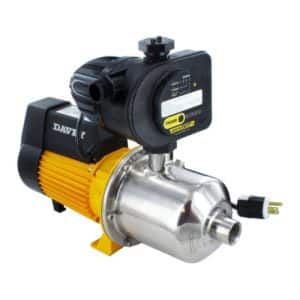

2. Davey Water Products BT20-30T2-USA Home Pressure Booster Pump with Torrium II Controller

The Davey Water Products BT series with Torrium II controller has a flow rate of 20 gpm to deliver the boost of water pressure that your home or other application requires. It provides for a versatile installation with a vertical or horizontal 360 degree discharge. To stop bothersome water temperature changes when taking a shower, the Torrium®2 provides households with a constant flow which allows for even water pressure. Through its equipped sensors that monitor the pressure and flow, the pump will start during pressure drops and stop when the pressure is low.

Find Best Water Powered Sump Pump Here.

This pump is equipped with a pressure indicator window. This allows the homeowner to easily see the working status. If there is a green color band, maximum pressure is indicated; if the indicator is red, the pressure is low, this will allow the user to determine if there are any leaks in the system. Should the color band indicator be slowly moving towards the red, then a slow drop in pressure has been detected and may indicate a possible leak.

Highlighted Features
  • Pressure Boost = 50 psi (30 psi at 20 gpm)
  • Stainless Steel Impellers and Pump Casing
  • Power Surge Protected TEFC Motor
  • Dry-Run Protected
  • Flexible S/S FIP Discharge hose

Pros

  • Stainless steel impellers
  • Stainless steel casing
  • Corrosion resistant
  • 50 psi pressure boost
  • 20 gpm flow rate
  • Pressure indicator
  • Quiet
  • Durable
  • Two-year warranty

Cons

  • Rare leaking issues (Check warranty)

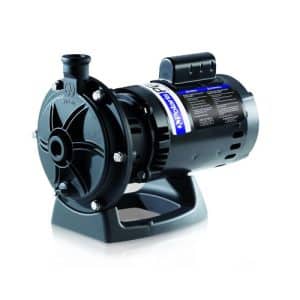

3. Zodiac PB4-60 Polaris Booster Pump with 60-Hertz Motor

The PB4-60 provides power and high-performance with a quiet operation. The compact size allows for peak performance with its 60 mhz, 3/4 horsepower motor. The booster provides added energy savings as it has the ability to operate at a 2-speed or variable-speed pump.

Polaris booster pumps are generally designed specifically for operating the Polaris pressure-side pool cleaners.

The Zodiac PB4-60 has an easy and quick installation.

The PB4-60 also provides a heavy-duty single-piece base and a redesigned volute with improved seal for leak prevention. It also comes equipped with an ergonomic drain plug with o-ring allowing for tool-free removal when draining or winterizing the unit. Some user reviews found that the unit didn’t last very long and was noisy, however, there may have been issues in shipping that damaged the unit on at least a couple of the reviews. Other users found the unit to be easy to install and works to, and beyond, their expectations.

Highlighted Features
  • Ultra high efficiency 3/4 horsepower motor
  • Heavy duty single piece base. Amps: 6.4/12.8
  • Captured backplate nut fasteners
  • Egonomic drain plug with o-ring
  • New larger volute seal o-ring

Pros

  • Easy installation
  • Heavy duty
  • Single piece base
  • Flexible hoses provided
  • Durable
  • Compact
  • Variable speed

Cons

  • Motor reportedly can wear out quickly
  • Short one-year warranty

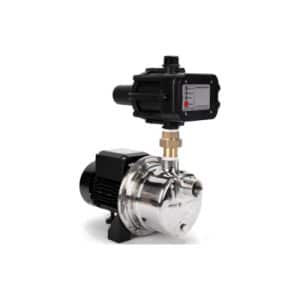

4. Bur-Cam 506532SS Water Pressure Booster Pump

The BurCam 506532SS is equipped with an easy to prime stainless steel pump body with a completely enclosed 3/4 HP motor that is fan-cooled for thermal and overload protection. The unit has easy installation and is durable and is equipped with a capacitor to eliminate wear when starting. The BurCam 506532SS is built for dual application, allowing it to be used as a pressure booster or as a shallow well jet pump.

This BurCam unit was built for continuous or intermittent use with a maximum pressure of 65 psi.

It pumps from a 200 foot depth and it lowers the chance of sand locking with its floating stack design. This unite provides for a maximum of 897 gallons per hour at 30 psi and is equipped with a 10 foot power cord.It also comes equipped with a controller to sense a drop in pressure when faucets are turned on, allowing it to keep the water pressure stable and is a very durable unit. Much praise is given to its low noise emissions. The BurCam unit provides a 2-year warranty.

Highlighted Features
  • 3/4 HP DUAL APPLICATION TANKLESS SHALLOW WELL JET PUMP: State of the art 3/4 HP stainless steel jet pump to provide the best corrosion resistance fresh water supply for your home, cottage and farms.
  • JET PUMP: Eliminates the need for a tank and pressure switch. Delivers full flow and maximum pressure.
  • BOOSTER PUMP: Ideal as a pressure booster or a conventional shallow well jet pump.
  • PUMP OPERATION: Automatic operation, no maintenance, electronic control that prevents the pump from running out of water in case of low water supply.
  • STAINLESS STEEL JET PUMP: Stainless steel pump body prevent corrosion and rust contamination.
  • HIGH QUALITY STAINLESS STEEL CONSTRUCTION: The BURCAM stainless steel shallow well jet pump equipped with an industrial motor fan cooled motor with a large stainless steel corrosion-resistant body, easy to prime.
  • SHALLOW WELL JET PUMP: Maximum vertical lift of 25 feet.

Pros

  • Two year limited parts / no labor warranty
  • Stainless steel body
  • Corrosion resistant
  • Durable
  • Dual application
  • Easy to prime
  • 3/4 Horsepower
  • 25 feet max vertical lift
  • Weighs only 19 lbs

Cons

  • Manufacturing
  • User-instructions are unclear

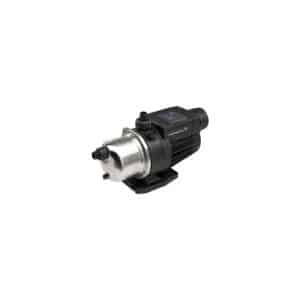

5. Grundfos MQ3-35 96860172 3/4 HP Pressure Booster Pump

The Grundfos MQ series has a simple operation and is self-priming. It’s compact in size, is easy to install and simple to use. This unit provides for built-in protection from moments of no water flow or excessive temperature, which will shut the unit off. The pump then uses its automatic reset to attempt to start the unit every 30 minutes over a 24 hour period. It is also equipped with a built-in pressure tank to reduce the number of starts it requires.

The Grundfos unit is designed to boost water pressure in domestic applications and boasts an all-in-one unit to prevent leaks and breaks at seams. It has the ability to pull water from a 26 foot depth at a rate of less than five minutes. This unit is suitable for drinking water and rain water. One user review noted using just one pump feeds their entire house and they use it in their place of work as well, running it in high demand without any issues.

Highlighted Features
  • Simple operation - self priming
  • Built in dry run protection
  • Automatic reset function
  • Low noise level
  • Built in pressure tank reduces number of starts

Pros

  • Easy installation
  • Compact size
  • Dependable
  • Quiet
  • Automatic reset
  • Function indicator
  • Built-in pressure tank
  • No maintenance
  • 24-month warranty

Cons

  • Best for light use
  • Short lifespan

What is the Best Water Pressure Booster Pump?

A water pressure booster pump is a centrifugal pump used to increase the water pressure. These pumps are designed to increase the performance of your existing pump system, therefore, they cannot transport water on their own. There are a variety of applications for booster pumps and they can be used in conjunction with other pumps when needed.

There are different types of booster pumps available, and their use depends on the head (pressure) and flow needs. The types of booster pumps include:

  • Horizontal split case
  • Multi-stage
  • Single-stage
  • End suction
  • Vertical turbine

Booster pumps have three different key features to look for when choosing which one you need. All three types have varying ranges, the ranges are as follows; flow rate, which can range between five and 10,000 gallons per minute (gpm); total pressure (head) can range between 200 to 7,500 feet; and horsepower, which can range from one and up to 5,000.

How do Pressure Booster Pumps Work?

Booster pumps are centrifugal, meaning they move the water away from a center point. They rely on one or more impellers, drawing the water into the pump which then boosts the pressure as it passes through the impeller.Some booster pumps have a single impeller (single-stage), while others may have more. Pumps with single-stage impellers are for use where the added pressure needed is not a large amount, like in a residence. The multi-impeller (multi-stage) booster pumps are good for use in moving water up a higher elevation or at a longer distance, like in a tall building or for agriculture use.

Where are Pressure Booster Pumps Used?

A water pressure booster pump has many applications, for instance, they can be used for:

  • Pumping water from a well to a house supply
  • Moving water uphill
  • For irrigation systems
  • Pumping water into a large commercial or residential building
  • For reverse osmosis systems and filtration

How To Choose Right Water Pressure Booster Pump

In order to select the pump that will properly fit your needs, you’ll first need to answer two questions. - How far does your water need to travel to reach its intended source?

What pressure is your water currently coming in at?

Knowing this information will get you started on determining which pressure booster pump will work best for your application.

Also note, that horsepower is not the most important feature to look for, so don’t purchase a pressure booster based mainly on horsepower. This is due to the fact that pumps can have the same horsepower but not the same flow rates and pressures.

Some things that you should look at when comparing models includes:

Check your power source

Make sure that your power source can be used with the type of pressure booster pump you are looking to purchase so that you don’t have to have an electrician wire for a higher voltage.

Housing Material

Choosing a stainless steel body housing will ensure a corrosion resistant booster pump, providing a longer lifespan

Single-stage vs Multi-stage
Multi-stage:

  • Multi-stage provides for quieter operation
  • Allows the pump to not work so hard on longer piping systems or rising elevations

Single-stage:
Galvanized tank or bladder

A galvanized tank or bladder will provide safe, potable water for use in residential capacity.

Things to Consider:

1. Flow Rate (GPM=gallons per minute):

  • The maximum flow rate is the highest achievable rate of volume that water is discharged through the pump.
  • Determine the maximum flow rate you need before making your decision.

2. Total Pressure (Head):

  • Head refers to the maximum height the pump can push the water when fighting gravity.
  • Pressure can change if the liquid's gravity changes, but the head will not.
  • Determine the total head needed for your application before making your selection of pressure booster pumps.

3. Pressure Boost:

  • The pressure boost is the highest achievable pressure that needs to be added to the current water pressure of your system.
  • The amount will be referred to in head feet or pounds per square inch (psi).
  • The difference between the system pressure and the existing water pressure will be the pressure needed with the pump.

4. Self Priming:

  • A self priming pump will create and maintain an appropriate vacuum level to pull fluid into an inlet without assistance.

5. Variable Speed:

  • A variable speed will allow the pump to be operated at various speed levels.
  • Provides for energy savings.
  • Allows the pump speed to be changed based on the needed flow of water.

Other Considerations:

  • The power source of the pumps could include AC or DC powered or magnetic drive, a magnetic drive unit is one that is assembled with permanent magnets mounted to a drive assembly on a standard electric motor.

Who Needs the Best Water Pressure Booster Pump?

The Best Water Pressure Booster Pump can be used in a multitude of applications and most people will have a use for one at one time or another. Pressure booster pumps can be used in residential, commercial, farms, apartment and commercial buildings and even for water irrigation systems. Homeowners making upgrades or renovations to their home should consider if a pressure booster pump will be needed. If larger pipes are being installed or if you are adding plumbing areas such as bathrooms or kitchens you may need a pressure booster pump. Check with your local city office before making any renovations.

Factors that Cause Low water pressure

Problem with the plumbing system

The pipes may have clogged or are leaking, which reduces the pressure of water flowing into your home. Low water pressure caused by this problem can only be resolved by inspecting and fixing your piping system.

New water fixtures additions

If you have added a new water fixture in your home such as an extra tap, it can cause a reduction in water pressure. A booster pump can fix this issue.

The water source is far

If you are located at the far end of the water supply line of your locality, then the amount of water reaching your home may be too low; hence, the reason why you are experiencing low pressure. Installing a water pressure booster pump can help you to increase the water pressure in your home.

Elevation

If your home is elevated high above the source, then you should expect to experience low-pressure water because of gravity. You will require a pressure booster pump to fix the issue.

Low pressure in your locality’s supply line

The water supplier in your region may be feeding water into the supply line with low pressure; hence, you also get low-pressure water running out of the tap. You can boost the water pressure when it reaches your home by installing a water pressure booster.

Testing Water Pressure

Its essential you check your water pressure regularly because too much pressure can affect the piping system, while too low pressure can lead to an inadequate supply of water in your home.A pressure of more than 75 psi can damage your plumbing system while that of below 30 psi can be too low.

To test the water pressure, attach a pressure gauge to an outside spigot to get the pressure readings in terms of pound per square. If the pressure is low, you can install a water pressure booster pump using the following guide.

Installing a water pressure booster pump

  • Turn off the water supply into your home at the main water supply valve.
  • Then clean the section on the main water supply line where you want to install the pressure booster pump.
  • Use a tubing cutter to cut out a section of the waterline.
  • Put up the pressure booster pump in place, then cut and fit a copper pipe to run out of the pressure booster to the main water supply. Remember to check the directional arrows to ensure you fit the booster in the appropriate ports, i.e., inlet and outlet.
  • Seal the connections by soldering them to prevent leakages.
  • Connect the booster’s pump switch to the electrical panel. If you aren’t comfortable or confident to do it, consider seeking the assistance of an electrician.
  • Turn on the water valve, and your pump should power on.

You should have a bypass in place to isolate the pump just in case it fails to ensure you continue getting water supply into your house while you troubleshoot it.

Final Verdict

Having the proper amount of water pressure can make or break a person. As you can see, all the booster pumps listed here are of good quality and performance. Their features provide for reliability, comfort and durability. We’ve outlined all the best features and provided actual user's feedback.

Making a choice between these five booster pumps is going to come down to your needs and wants. If you have minimal needs, you don’t need to purchase a pump that is more suitable for big commercial buildings. Purchasing a best water pressure booster pump that is beyond your needs is just spending money you don’t need to spend.
